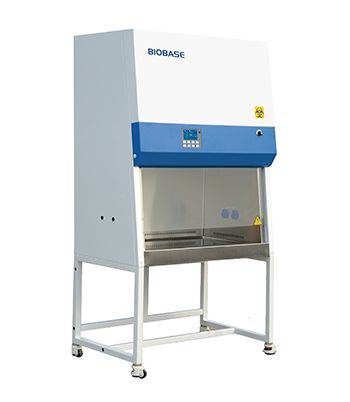

Class II A2 Biological Safety Cabinet

LCD Display                                                                    Work Zone

Large digital display is easy to monitor all the                Work zone, made of 304 stainless steel,

safety parameters at a glance and ergonomically           is surrounded by negative pressure.

sized control panel improves user interface.

Remote Control                                                             UV lamp

All functions can be realized with it, making the            Emission of 253.7 nanometers for most efficient

operation much easier and more convenient.               decontamination.

Front Window                                                                 Footmaster caster

Two-layer laminated toughened glass>5mm,                 Universal caster with brake and leveling feet.

anti UV                                                                            Adjust front window height by foot during

                                                                                       experiment, to avoid airflow turbulence caused

                                                                                        by arm movement.

Foot Switch                                                                        Air-Vent

Adjust front window height by foot during                         Only for BSC-1100IIA2-X and BSC-1500IIA2-X

experiment, to avoid airflow turbulence caused

by arm movement.

ADVANTAGES:

1. Motorized front window.

2. Large LCD display, all information displayed.

3. Automatic air speeds adjustable with filter block.

4. With memory function in case of power-failure.

5. Side & back wall is made of single piece stainless steel

6. Single piece SS removable work tray.

7. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.

8. Front 100 slanted to offer operator comfort while working for long time, reduce glare and maximize reach in to work area.

9. Armrest is above the intake of grill to enable farther reach inside the cabinet without hampering safe airflows inside the cabinet working area.

10. All the positive pressure contaminated plenums within the cabinet are surrounded by a negative air pressure plenum thus ensuring that any leakage from a contaminated plenum will be drawn into the cabinet and not released to the environment. Also the plenum to be under negative pressure to the room.

11. Differential pressure sensor  for monitoring of condition of HEPA filters
