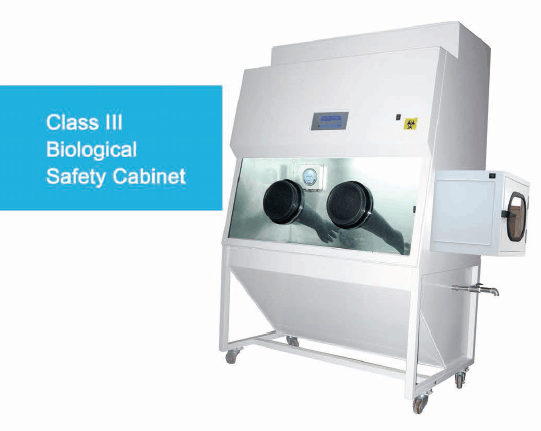

Class III Biosafety Cabinet
Totally enclosed and gas-tight with ULPA filtered supply and exhaust air. Work is performed with long-sleeved gloves. The cabinet is kept under negative pressure of at least 120 pa, and airflow is maintained by a dedicated exterior exhaust system. It can protect the operator, product and environment.
1.UV lamp ensures work area sterilization effectively.
2.An angled cabinet front ensures an ergonomic working posture.
3.Exhaust air is double-filtered through high-quality ULPA filters with typical efficiency of 99.999% for 0.1~0.2μm particles
Fluorescent lamp 1pc.
UV lamp 4pcs.
Remote control 1pc.
Pressure meter 1pc.
Drain valve 1pc.
LCD Display Large display is easy to monitor the pressure parameters for work zone and three filters.
Pass Box Double doors with interlock function and UV lamp.
Pressure Meter Display the pressure of work zone.
UV Lamp Emission of 253.7 nanometers for most efficient decontamination.
Class 3 Biological Safety Cabinet Class 3 Microbiological Safety Cabinets provide total barrier protection for the operator and are suitable for extreme bio-hazard work. Inflow air is HEPA filtered before entering the Class 3 Biological Safety Cabinet via a side mounted inlet filter chamber. Exhaust air is HEPA filtered before leaving the safety cabinet via a single or double HEPA filter, dependant on the customer’s specific technical requirements. Total enclosure of the working area User separated from the work by a physical barrier Filtered air continuously supplied to the safety cabinet Exhaust air treated to prevent contamination Creates total protection for user and materials Manipulations within the Class 3 Biological Safety Cabinet are carried out via gloves mechanically attached to the cabinet providing a total seal against any particulate contamination released within the main working area. Only Class 3 cabinets which are totally enclosed units are suitable for work with Group 4 hazards.
