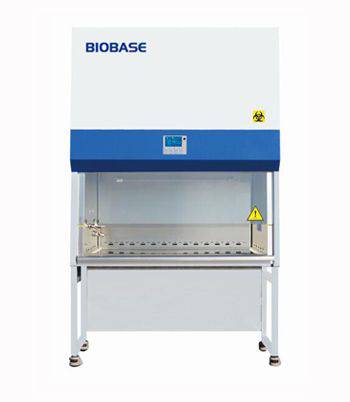

EN Certified Biological Safety Cabinet

No review yet. Write Review
Regular price
£5,000.00
Regular price
Sale price
£5,000.00

Product Type :

Sku : cabinet-12

Hurry! Only
10
units left in stock!

LCD Display                              Work Zone

LCD Display                                                                  Work Zone

Large digital display is easy to monitor all                     Work zone, made of 304 stainless steel,

the safety parameters at a glance and                          is surrounded by negative pressure.

ergonomicallysized control panel improves

user interface.

Remote Control                               UV Lamp

Remote Control                                                             UV lamp

All functions can be realized with it, making                   Emission of 253.7 nanometers for most

the operation much easier and more                             efficient decontamination.

convenient.

      Front Window                         Footmaster

Front Window                                                                Footmaster Caster

Two-layer laminated toughened glass>5mm,                Universal caster with brake and leveling feet.

anti UV

Water zone                                        Waterproof Socket

SS Water tap&Gas tap                                                                    Waterproof Socket

                                                                                       2 waterproof sockets are located in the

                                                                                       side wall, for optimum convenience of

                                                                                       using small devices inside the cabinet.

Advantage:

1. Motorized front window.

2. Large LCD display, all information displayed.

3. Automatic air speed adjustable with filter block.

4. Side & back wall is made up of single piece stainless steel.

5. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

MODEL:

Model

BSC-3FA2 (3')

BSC-4FA2(4')

External Size(W*D*H)

1087*775*2265mm

1383×775×2295mm

Internal Size(W*D*H)

910*600*660mm

1210×660×660mm

Work Surface Height

750mm

Max Opening

520mm (21’’)

550mm (22’’)

Tested Opening

Safety height 200mm (8’’)

Airflow Volume

Inflow

348m3/h(205cfm)

462m3/h(275cfm)

Down flow

65%:649m3/h(375cfm)

65%:863m3/h(498cfm)

Exhaust

35%:348m3/h(211cfm)

35%:462m3/h(287cfm)

Front Window

Manual. Two-layer laminated toughened glass ≥5mm. Anti UV

HEPA Filter

Two, 99.999% efficiency at 0.3um, filter life indicator

Filter Guard Type

Aluminum alloy frame

Noise

NSF 49≤61 dB/EN 12469≤58 dB

Illumination

≥1000Lux

Display

LCD Display

Waterproof Socket

2, Total consumption:≤500W

Tap

Water tap*1, Gas tap *1

Ground Resistance

≤ 0.10Ω

Power Supply

AC230V, 50Hz

Consumption

≤500W

≤600W

Alarm

Abnormal airflow velocity; Filter replacement; Front window at unsafe height

Motor

One ECM motor, 110V& 220V acceptable, Speed adjustable,

high efficiency and low power consumption

Material

Working area: 304stainless steel/  Frame and Decorative Plate: cold-rolled steel with

anti-bacteria power coating

UV Lamp

18W

30W

Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination

Standard Accessory

Fluorescent lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve,

Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks.

Optional Accessory

Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer,

Adjustable base stand, Remote control, Motorized front window,

Height adjustable base stand

Package Size (W*D*H)

1250*1080*1840mm

1540*1080*1900mm

Gross Weight

270kg

334kg

Standard Accessory

Waterproof sockets 2pcs

Base stand 1pc

Remote control 1pc

Fluorescent lamp 1pc

Drain valve 1pc

Optional Accessory

Armrest

Airflow tester

Infrared sterilizer

Formalin fumigation sterilizer
