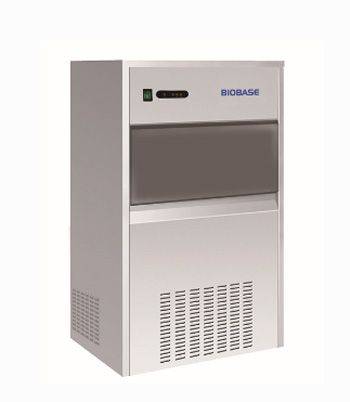

Flake Ice Maker

No review yet. Write Review
Regular price
£5,000.00
Regular price
Sale price
£5,000.00

Product Type :

Sku : FIM100

Hurry! Only
10
units left in stock!

  Features:

  Features:

1. High-quality stainless steel is used for their shells, they are anti-corrosive and durable, and the all-in-one independent structure makes them simple and compact and space-saving.

2. Their boxes are protected with fluorine-free foam thermal cover featuring good insulation effect. Their internal bladders are of fluorine-free bacterial inhibitory-type. They are both energy-saving and environmental friendly.
3. High quality and efficient use of fluorine-free R134a compressors, parts and components have passed relevant safety certifications, and they are safe and reliable.
4. They have ice full display, water deficiency display, overcooling protection display and malfunction warning display, etc. for shutdown protection. The stop automatically in case of ice full or water deficiency and start automatically when power or water supply is resumed. They have automatic reminiscence function.
5. The ice made is small shaped, amorphous granular flake chipped ice, which can infiltrate into narrow space, featuring fast cooling speed, good ice bathing effect. It is specially designed for laboratories.
6. There are power switch and function indicators deployed in the front with detailed instructions. It is intuitive and easy to use. Various safety performance indicators have passed electrical tests, they are safe and reliable.
7. Flake shaped ice is widely used in hospitals, schools, laboratories, research institutes and so on, as well as for food preservation in supermarkets, fishing refrigeration, medical applications, chemical, food processing and other industries. It has wide range of applications.



MODELS

Item No.

FIM20

FIM30

FIM40

FIM50

FIM60

FIM70

FIM85

FIM100

FIM130

FIM150

FIM200

FIM250

FIM300

Ice making capacity(kg/24h)

20

30

40

50

60

70

85

100

130

150

200

250

300

Ice storage capacity(kg)

10

10

15

15

25

25

25

25

35

35

55

55

55

Ice shape

Irregular small granular snowflake crushedice

Input current(w)

180

180

280

280

420

420

420

420

685

685

805

1370

1850

Ambient Temp.

10~25℃

Water Temperature

10℃

Power Supply

 AC220V±10%,50/60HZ; 110V±10%,60HZ

Refrigeration type

 Air cooling

Tank shell

 Stainless steel

Compressor / refrigerant

 CFC-free/R134a

Standard Accessories

Water inlet pipe*1,  Drainage pipe*1,  Ice spoon*1,  Sealing washer*2

Optional Accessories

Filter  (Water pressure needs to be within 1.5~3Kg/cm2 )

Net weight(kg)

32

32

40

40

57

57

57

60

62

62

85

91

100

Gross weight(kg)

36

36

45

45

62

62

62

67

68

68

91

98

106

External Size(W*D*H)mm

330*503*607

380*543*722

398*543*837

635*611*945

680*641*1102

Package Size(W*D*H)mm

400*574*655

457*621*770

475*622*886

712*690*994

757*720*1150

Applicable area

Various types of experiments, supermarkets, hotels and other seafood products stores etc.
