Horizontal Electrophoresis

No review yet. Write Review
Regular price
Regular price
Sale price

Product Type :

Sku : MINIE-135

Hurry! Only
units left in stock!

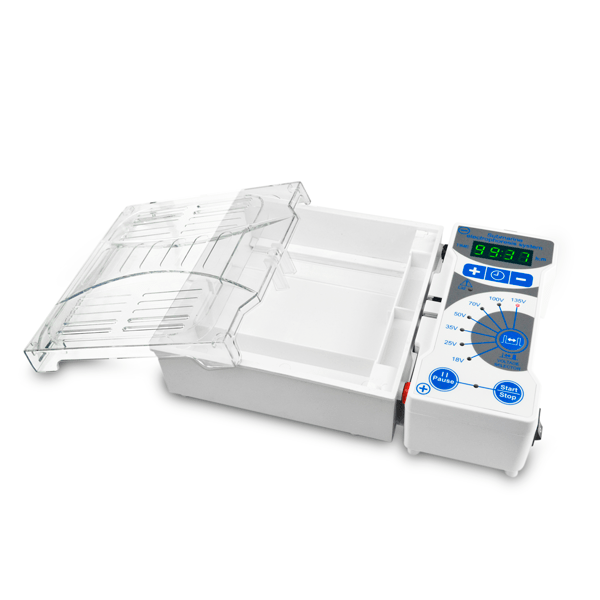

MINIE-135 Horizontal Gel Electrophoresis Unit is a one-body electrophoresis Unit, which has compact design, stable performance, easy operation and good reproducibility and cost performance. On one hand, unique design, it assure the uniformity of electric field in unit. On the other hand, as the bubble produced by platinum electrode is separated, buffer PH has good stability. It is widely used in chemical field, ideal for teaching, scientific research, food and medical treatment. Horizontal gel electrophoresis unit is mainly used for separation and test of nucleic acid.


1、New and unique appearance, mini and portable; The electrophoresis tank and power can be separated.

2、The cover with safey design, flip cover immediately power off, to ensure safety;Transparent cover+ open hole design, easy to heat dissipation and observation; Top handle design, easy to pick and place.

3、One-key select 135V, 100V, 70V, 50V, 35V, 25V, 18V seven desired output voltage, convenient and efficient  saving standby consumption.

4、Specially designed Electrophoresis shape, reducing the temperature difference between the buffer, while the heat  benefit is improved. Put the gel into a limited position without drift.

5、With the pause function, timing function, can leave after press the start button, with Alarm function, buzzer alert  at the end.

6、Highlight digital tube displays the set parameters, default remember the output voltage and time Settings of the previous operation.

7、When the electrophoresis current exceeds the peak current, will automatically adjust the voltage to reduce the current value, improve the experimental reproducibility.

8、Equipped with variety of specifications of gel trays / combs, compatible with a variety of experimental needs, compatible with high-throughput electrophoresis and multi-channel pipette operation.


Model   MINIE-135 Horizontal Gel
  Electrophoresis Unit
 Capacity   Max 500ml (please increase or decrease
  according to the size of the gel)
 Inner diameter dimension
 ( W×D×H )
 Multi-channel suitability   Suitable for multi-channel pipettor
 Timing function   1min~999min or continu, with pause function
 Security Settings   The power is automatically paused when
   the cover is lifted
 Storage function   Automatically memorize the previous operating
  voltage and time
 Input power   AC100~240V、AC50/60Hz
 Output voltage   Constant peak voltage (140V), impulse control
 Dimensions ( W×D×H )   260×170×68mm
 Net weight   0.78kgs
