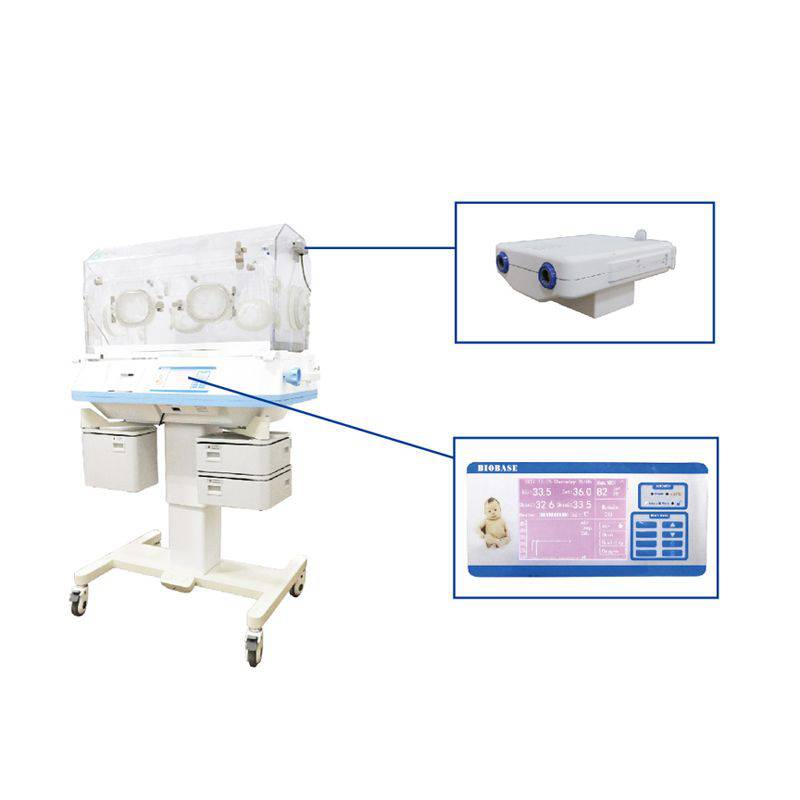

Infant Incubator BK-IN 1 Pro

No review yet. Write Review
Regular price
£5,000.00
Regular price
Sale price
£5,000.00

Vendor : Drug Testing kits UK

Product Type :

Sku : BK-IN 1 Pro

Hurry! Only
10
units left in stock!
Reassurance Image
Free Delivery
Lorem Ipsum dummy
Reassurance Image
Big Savings
Lorem Ipsum dummy
Reassurance Image
Customer Care
Lorem Ipsum dummy
Reassurance Image
Gift Voucher
Lorem Ipsum dummy
"

Features

1. Microprocessor based servo control mode: air temperature, skin temperature, humidity, oxygen concentration.

2. LCD display: set temperature, skin temperature, humidity, oxygen concentration, heat power rate.

3 .Double-layer thermostat cover; 4 operating windows and 2 iris ports.

4. Self–testing function;22 kinds of audible and visual alarms.

5. >37℃ preset mode.

6. Independent locking device for front door.

7. The inclination of infant bed is adjustable.


MODELS

Model

BK-IN 1 Pro

Specification of Hood

Hood Size (W*D*H)mm

865*455*490

 Mattress Size(W*D)mm

770*380

Thermostat Cover

Double-layer

Access Port

6(2 Iris Ports)

Operating Window

4

Infusion Seal

8

Technical Parameters

Power Supply

AC110/220V±10%, 50/60Hz

Consumption

1320W

Heater Consumption

Heating chamber: 290W; Water box:170W

Display

LCD

Control Model

Air, Skin, Humidity, Oxygen concentration

Heating Indicator

0~100%, 10% increments

Air Temp. Control Range(℃)

25.0~37.0; 37.0~38.0

Skin Temp. Control Range(℃)

34.0~37.0; 37.0~38.0

Skin Sensor Temp. Display Range(℃)

5.0~65.0

Skin Sensor Temp. Accuracy(℃)

±0.3

Temp. Rise Time(Ambient Temp. 22℃±2℃)

≤50 min

Temp. Fluctuation(℃)

≤0.5

Mattress(Horizontal)Temp. Uniformity(℃)

≤0.8

Mattress(Tilted)Temp. Uniformity(℃)

≤1.0

The Difference between the Average Air Temp. and the Set Temp.(℃)

≤1.5

Water Box Capacity(ml)

1200

Relative Humidity Display Range

0%~99% RH

Relative Humidity Control Range

CAH%RH~90%RH

Humidity Display Accuracy

±10%

Oxygen Concentration Display Range

0%~99%

Oxygen Concentration Display Accuracy

±5%

Oxygen Sensor Lifetime

10000 hours under 100% oxygen concentration

Noise Level of Inside Incubator

≤55dB[A]

Infant Bed Tilt Angle

±10%

Operating Condition

Working Temp. Range(℃)

20~30

Transport and Storage Temp. Range(℃)

-20~55

Working Relative Humidity

30%~75% RH

Transport and Storage Relative Humidity

≤93%RH

Ambient Air Flow Rate

<0.3m/s

Working Atmospheric Pressure

800hPa~1060 hPa

Transport and Storage Atmospheric Pressure

500 hPa~1060 hPa

Application Environment Elevation

≤2000m

Overvoltage Category

Pollution Grade

2

General Alarm

Power Failure, Fan Failure, Temp.Deviation, Sensor failure,Over Temperature,Water Shortage, etc

System Alarm

Communication Deviation, Temp. and Humidity Deviation

Standard Accessory

RS232 interface connector, X ray cassette, IV pole, tray, drawer*3.

External Size(W*D*H)mm

1050*675*1400~1600

Net Weight

117kg

PackageSize(W*D*H)mm

Control Unit and Hood

Base



1190*780*890

1100*760*830

Gross Weight

127kg

"
