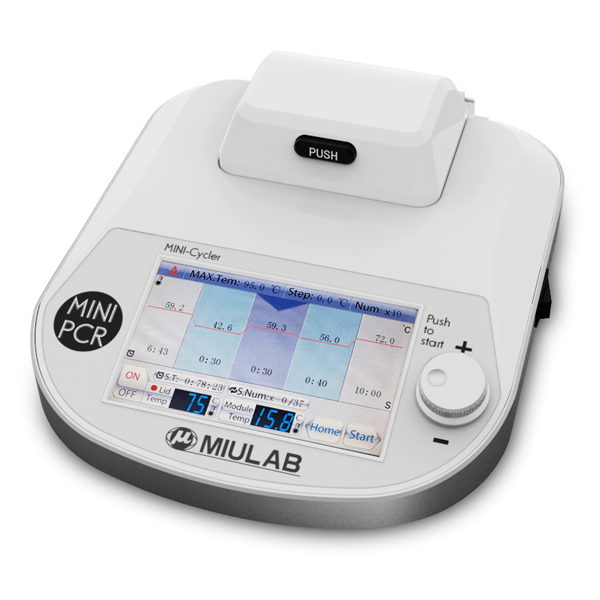

MP-16 Mini PCR instruments is an ultra-light ultra-thin thermal cycle gene amplification instrument. Using 5-inch TFT high-definition true color full touch LCD screen, the whole program displays in real time with curve graph, par- ameter modification intuitive and convenient. Using the latest generation of semiconductor heat pump technology, excellent temperature accuracy and uniformity and have extremely high temperature change speed, to ensure high-quality experime- ntal results. Mini portable can be used on-board.


1、New and unique appearance, the interface operation is simple

     and convenient, ultra-light ultra-thin, mini portablecan be used  on-board.

2、The latest generation of semiconductor technology, excellent  augmentation performance, effectively eliminate the edge effect of module heat conduction, the module temperature uniformity  excellent.

3、Fast heating/cooling rate, maximum can attain 5℃/S.

4、The bottom shell with one aluminum carved processing, not only quisite and solid, but also greatly enhance the heat dissipation rformance.

5、5-inch TFT full HD touch screen, real-time accurate display temperature curve and the instrument running process status.

6、Friendly and intuitive interface, a shorter time to complete the PCR program parameter setting, convenient and  fast.

7、Hot cover can be opened and closed at any time, higher compatible controllability.

8、Program built-in 16 groups commonly used parameter settings, the list flip page preview invoke, convenient and fast.

9、There are 2x8 and 4x8 two type modules (unique 8 PCR tube strips compatible modules) combination models  optional, to meet more experimental needs.


Model  MP-16
 Sample capacity  16 hole x 0.2ml
 Temp. control range  8 ~ 99.9℃
 Time adjustment range  1s ~ 60min
 Temp. display resolution  0.1℃
 Temp. control accuracy ±0.2℃
 Temp. uniformity ±0.2℃
 Max. Heating speed  5℃/s
 Max. cooling speed  4℃/s
 Stored program number 16
 Cycle number range  1 ~ 99
 Hot cover temperature  105℃
 Ambient temperature  8 ~ 30℃
 Control interface  Touch screen / knob adjustment
 Power supply  DC12V,10A Can be used on-board
 Dimensions ( Wx D x H )  200 x 230 x 85 mm
 Net weight  3.2kgs
