MP-32 Mini PCR instrument

No review yet. Write Review
Regular price
Regular price
Sale price

Product Type :

Sku : MP-32

Hurry! Only
units left in stock!

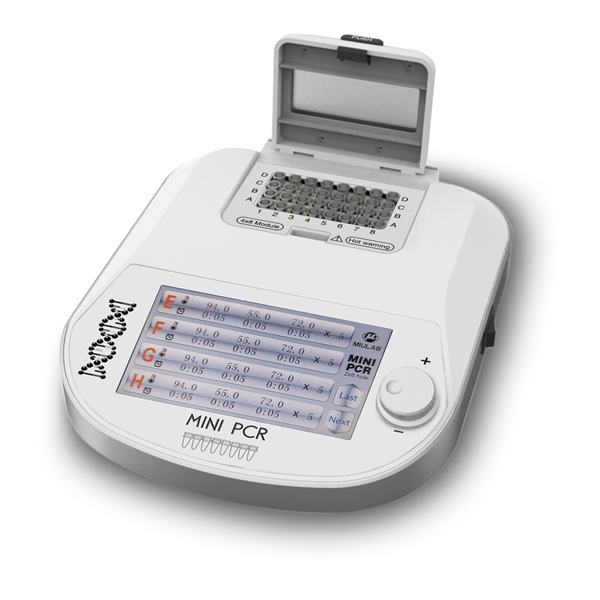

MP-16/MP-32 series Mini PCR instruments is an ultra-light ultra-thin thermal cycle gene amplification instrument. Using 5-inch TFT high-definition true color full touch LCD screen, the whole program displays in real time with curve graph, par- ameter modification intuitive and convenient. Using the latest generation of semiconductor heat pump technology, excellent temperature accuracy and uniformity and have extremely high temperature change speed, to ensure high-quality experime- ntal results. Mini portable can be used on-board.


1. New and unique appearance, the interface operation is simple

     and convenient, ultra-light ultra-thin, mini portablecan be used


2、The latest generation of semiconductor technology, excellent

     augmentation performance, effectively eliminate the edge effect

     of module heat conduction, the module temperature uniformity


3、Fast heating/cooling rate, maximum can attain 5℃/S.

4、The bottom shell with one aluminum carved processing, not only quisite and solid, but also greatly enhance

      the heat dissipation rformance.

5、5-inch TFT full HD touch screen, real-time accurate display temperature curve and the instrument running process


6、Friendly and intuitive interface, a shorter time to complete the PCR program parameter setting, convenient and


7、Hot cover can be opened and closed at any time, higher compatible controllability.

8、Program built-in 16 groups commonly used parameter settings, the list flip page preview invoke, convenient and


9、There are  4x8 type modules (unique 8 PCR tube strips compatible modules) combination models

     optional, to meet more experimental needs.


 Model       MP-32
 Sample capacity       32 hole x 0.2ml
 Temp. control range       8 ~ 99.9℃
 Time adjustment range       1s ~ 60min
 Temp. display resolution       0.1℃
 Temp. control accuracy      ±0.2℃
 Temp. uniformity      ±0.2℃
 Max. Heating speed      5℃/s
 Max. cooling speed      4℃/s
 Stored program number      16
 Cycle number range      1 ~ 99
 Hot cover temperature      105℃
 Ambient temperature      8 ~ 30℃
 Control interface      Touch screen / knob adjustment
 Power supply      DC24V,6A
 Dimensions ( Wx D x H )      200 x 230 x 85 mm
 Net weight      3.2kgs
