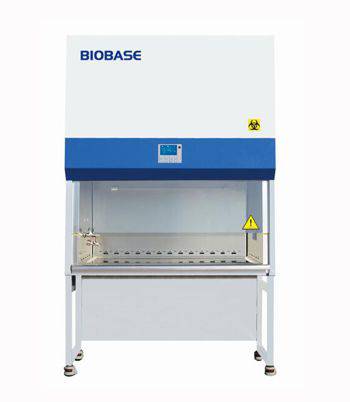

NSF Certified Biological Safety Cabinet (New Product)
- Regular price
- £5,000.00
- Regular price
-
- Sale price
- £5,000.00
- Unit price
- per
Product Type :
Sku : cabinet-15
Couldn't load pickup availability
Advantages:
1. Motorized front window.
2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
MODELS:
|
Model |
BSC-4FA2-GL(4') |
BSC-6FA2-GL(6') |
BSC-4FA2-NA(4') |
BSC-6FA2-NA(6') |
|
|
External Size(W*D*H) |
1383*775*2295mm |
1873*775*2295mm |
1383*775*2295mm |
1873*775*2295mm |
|
|
Internal Size(W*D*H) |
1210*600*660mm |
1700*600*660mm |
1210*600*660mm |
1700*600*660mm |
|
|
Work Surface Height |
750mm |
||||
|
Max Opening |
550mm (22’’) |
||||
|
Tested Opening |
Safety height 254mm (10’’) |
||||
|
Airflow Volume |
Inflow |
587m3/h(347cfm) |
824m3/h(485cfm) |
587m3/h(347cfm) |
824m3/h(485cfm) |
|
Down flow |
60%:863m3/h(508cfm) |
60%:1212m3/h(713cfm) |
60%:863m3/h(508cfm) |
60%:1212m3/h(713cfm) |
|
|
Exhaust |
40%:587m3/h(347cfm) |
40%:824m3/h(485cfm) |
40%:587m3/h(347cfm) |
40%:824m3/h(485cfm) |
|
|
Front Window |
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
||||
|
HEPA Filter |
Two, 99.999% efficiency at 0.3um, filter life indicator |
||||
|
Filter Guard Type |
Aluminum alloy frame |
||||
|
Noise |
NSF 49≤61 dB/EN 12469≤58 dB |
||||
|
Illumination |
≥1000Lux |
||||
|
Display |
LCD Display |
||||
|
Waterproof Socket |
2, Total consumption:≤500W |
||||
|
Tap |
Water tap*1, Gas tap *1 |
||||
|
Ground Resistance |
≤ 0.10Ω |
||||
|
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
||||
|
Consumption |
400W |
500W |
400W |
500W |
|
|
Alarm |
Abnormal airflow velocity; Filter replacement; Front window at unsafe height. |
||||
|
DC Motor |
One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption |
||||
|
Material |
Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating |
||||
|
UV Lamp |
30W |
40W |
30W |
40W |
|
|
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination |
|||||
|
Illuminating Lamp |
18W*2 |
22W*2 |
18W*2 |
22W*2 |
|
|
LED lamp |
|||||
|
Standard Accessory |
Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks |
||||
|
Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer, Electric height adjustable base stand, Remote control |
||||
|
Package Size (W*D*H) |
1540*1080*1900mm |
2020*1080*1900mm |
1540*1080*1900mm |
2020*1080*1900mm |
|
|
Gross Weight |
340kg |
370kg |
340kg |
370kg |
|
