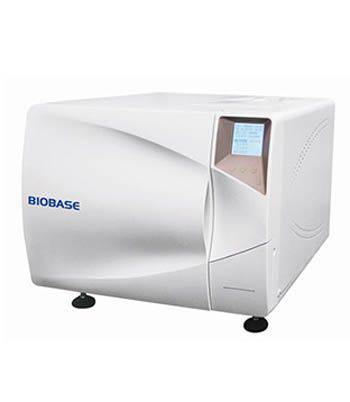

Table Top Autoclave Class B Series

No review yet. Write Review
Regular price
£5,000.00
Regular price
Sale price
£5,000.00

Product Type :

Sku : autoclave-17

Hurry! Only
10
units left in stock!
"

Features:

Build-in open type water tank

a. Easy-clean open type water tank

b. Water quality monitor

c. Water filter inside

d. Water level sensor

e. A fully injected water tank can support repeated program running.

Brand-new operation interface

The LCD screen can display temperature, pressure, time, operating status, error and alarm information, etc.

It is convenient for users to observe the sterilizer running status.

Multiple security protective device

Over temperature automatic  protective device, multiple control and protection for steam generator, door safety interlock protection and double chamber overpressure protection, electronic circuit safety device.

Automatic door

BKM-Z18/24/45B(III) series adopt automatic door structure, fast and simple operation, protecting operators from scald.

BKM60/80B(III) series adopt multipoint synchronous linkage pressing technology, reliable and durable.

Efficent vacuum

Efficient vacuum system, low working noise,vacuum lowest limit can reach over -90KPa, vacuum in high speed, perfect drying performance, thorough sterilization.

Multiple program types

Sterilization programs: Unwrapped, wrapped, ruber,user 01, N-quick, B-quick, prion test program: BD & Helix, Leakage test.

Auxiliary program: Preheat, drying, washing.

High-efficiency steam generator

BKM-Z18/24/45B(III) adopt build-in instant steam generator. BKM-60/80B(III) adopt build-in energy-storing steam generator producing steam in high speed and large quantity.

Other features

Pulse vacuum, heating, sterilization, exhausting, vacuum drying totally automatic.

The chamber is heated by film heater, saving energy and time.

Loading tray



MODELS:

Model

BKM-Z18B(III)

BKM-Z24B(III)

BKM-Z45B(III)

BKM-Z60B(III)

BKM-Z80B(III)

Capacity

18 L

24 L

45 L

60 L

80 L

Design Pressure

-0.1/0.3MPa

Design Temp.

144℃

Temp. Range

105~138℃

Chamber Material

Medical Stainless steel 304

Standard Loading Tray

Type A

Type B

Power Supply

110/220V±10%, 50/60Hz

220V±10%, 50/60Hz

Power Consumption

2.6 Kw

2.6 Kw

5.8 Kw

7.4 Kw

7.4Kw

Chamber Size(mm)

Ф250*350

Ф250*450

Ф316*618

Ф358*595

Ф358*717

External Size(mm)

560*530*450

660*530*450

830*640*550

1002*730*560

1002*730*560

Packing Size(mm)

780*720*680

880*720*700

1015*750*730

1180*830*795

1180*830*795

Gross Weight(kg)

70

80

140

185

205



Optional configuration

Operation type: push-button operation or inductive operation

Record type: built-in printer

Electronic storage: USB flash disk

Remote monitoring: Pad with android system

"
