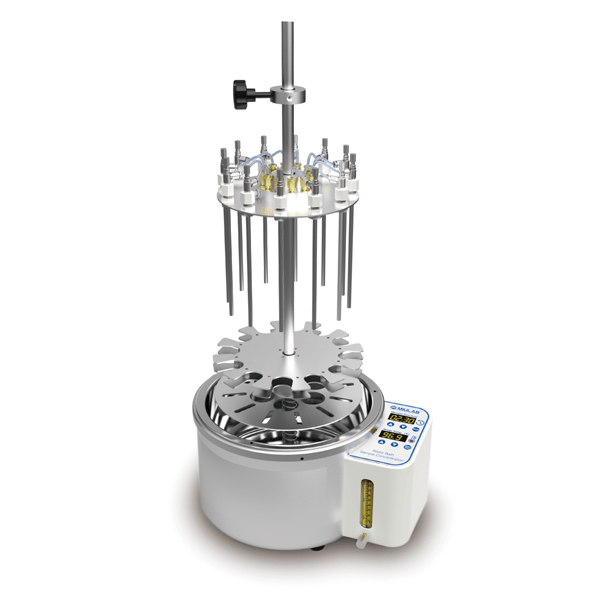

WT-12 Water Bath Sample Concentrator

WT-12 water bath concentration is mainly used for concentrating or preparing sample in batch. Such as drug screening, hormone analysis, liquid phase and mass spectrometry in the analysis of sample preparation. It works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of the rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate dozens of samples simultaneously.

Features

1. Elegant appearance, with elevation operation panel, embedded flowmeter, waterproof button, safe and reliable.

2. Good compatibility, suitable for test tubes (diameter 10 ~ 29mm), conical flask, centrifuge tube, the sample capacity  of 1 ~ 50ml.

3. Free up and down needle valve tube, independent adjustable needle valve, controls gas flow at each sample location.

4. Circular turntable structure, 360-degree rotation, convenient sample support into and out of thewater bath, easy to operate.

5. 12 position, each sample position are numbered, spring tube clamp fixed position.

6. LED real-time displays temperature and time, water bath temperature: RT +5 ℃ ~ 100 ℃.

7. All use of stainless steel, all components are anti-corrosion and resistant to organic solvents.

8. When concentrated toxic solvents, the entire system can be placed in a fume hood.

9. Built-in level sensor, anti-dry protection.

Parameters

Applications

1. Pharmaceutical drug testing：Chinese medicine and drug testing.

2. Food and beverage: milk, wine, liquid beverages.

3. Biological analysis: serum, plasma, blood, urine.

4. Commodity inspection: test dioxin, croft etc.

5. Environmental analysis: drinking water, groundwater, polluted water, etc.

6. Pesticide analysis: vegetables, fruits, cereals, plant tissues, etc.
